AndroidStudio創建手機登錄註冊跳轉界面

一、新建一個空的LoginActivity

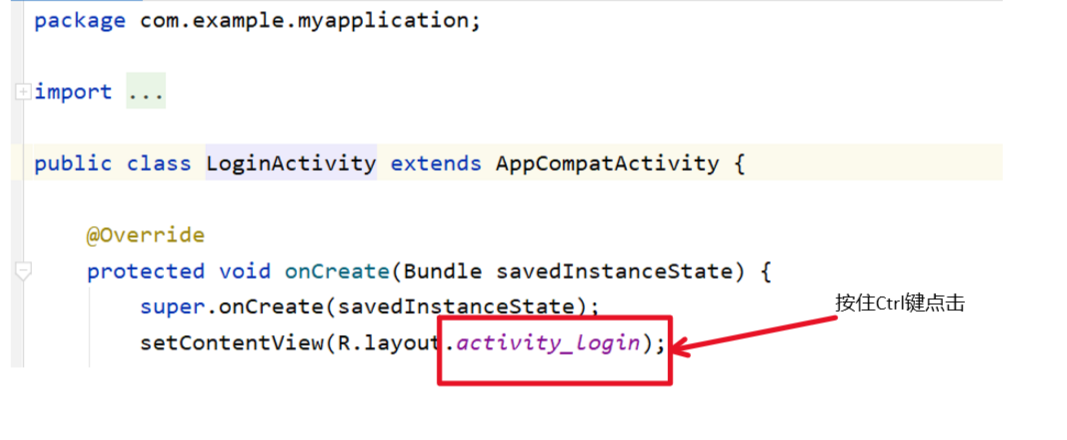

二、在activity.login.xml中進行佈局設計 (一)那麼如何打開呢這個.xml文件呢? 新建activity後裡面會有初始代碼,按住Ctrl鍵點擊activity.login就可以進入xml文件瞭。

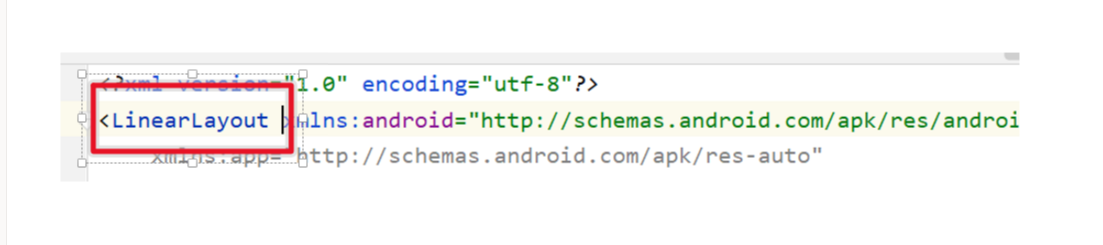

(二)如何進行登錄界面的佈局設計呢? 首先把這個xml改成線性佈局,把這個改成LinearLayout。

然後進行佈局界面設計

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"    xmlns:app="http://schemas.android.com/apk/res-auto"    xmlns:tools="http://schemas.android.com/tools"    android:layout_width="match_parent"    android:layout_height="wrap_content"    android:layout_marginLeft="10dp"    android:layout_marginRight="10dp"    android:background="@color/white"    android:orientation="vertical"    tools:context=".LoginActivity">    <LinearLayout        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:orientation="horizontal">    <TextView        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:textColor="@color/purple_200"        android:textSize="40dp"        android:background="@color/white"        android:gravity="center"        android:text="登錄系統"/>    </LinearLayout>    <LinearLayout        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:orientation="horizontal">        <TextView            android:textSize="25sp"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:textColor="@color/black"            android:text="用戶名"/>    </LinearLayout>    <EditText        android:id="@+id/login_name"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:inputType="text"        >    </EditText>    <LinearLayout        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:orientation="horizontal">        <TextView            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:text="密碼"            android:textColor="@color/black"            android:textSize="25sp" />    </LinearLayout>    <EditText        android:id="@+id/login_password"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:inputType="textPassword">    </EditText>    <LinearLayout        android:layout_marginTop="15dp"        android:gravity="center_horizontal"        android:layout_width="match_parent"        android:layout_height="wrap_content"        android:orientation="vertical">        <Button            android:id="@+id/login_btn"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:layout_weight="1"            android:text="登錄">        </Button>        <Button            android:id="@+id/reg_btn"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:layout_weight="1"            android:text="註冊">        </Button>    </LinearLayout></LinearLayout>

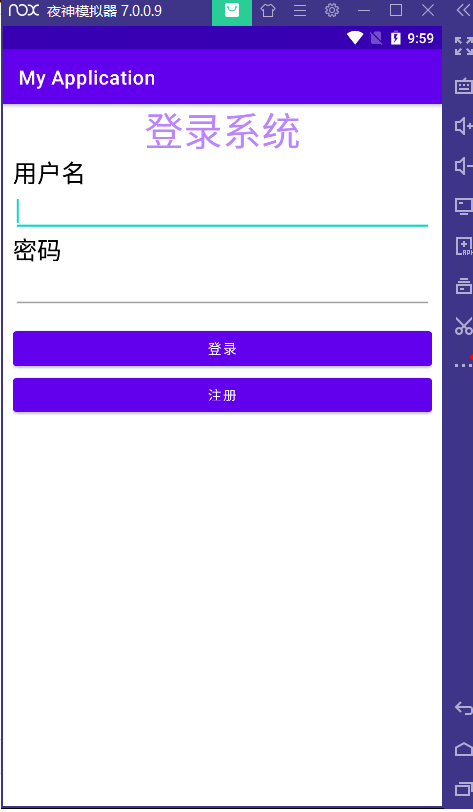

佈局界面展示

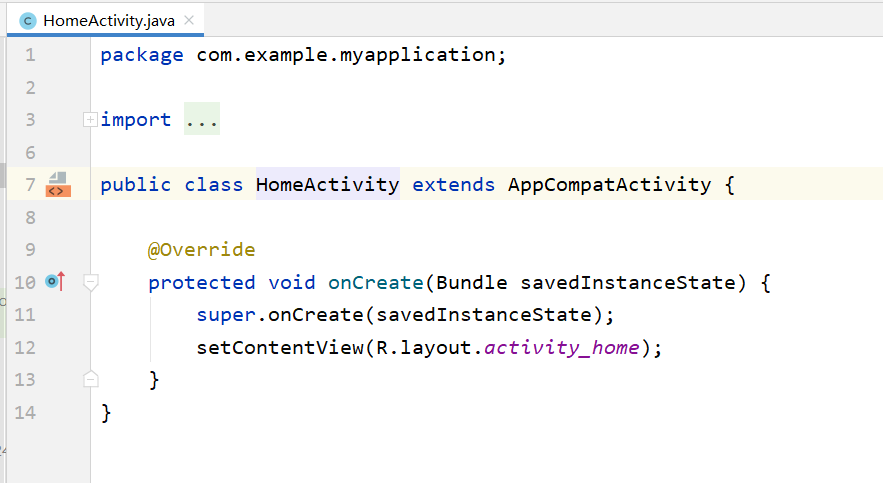

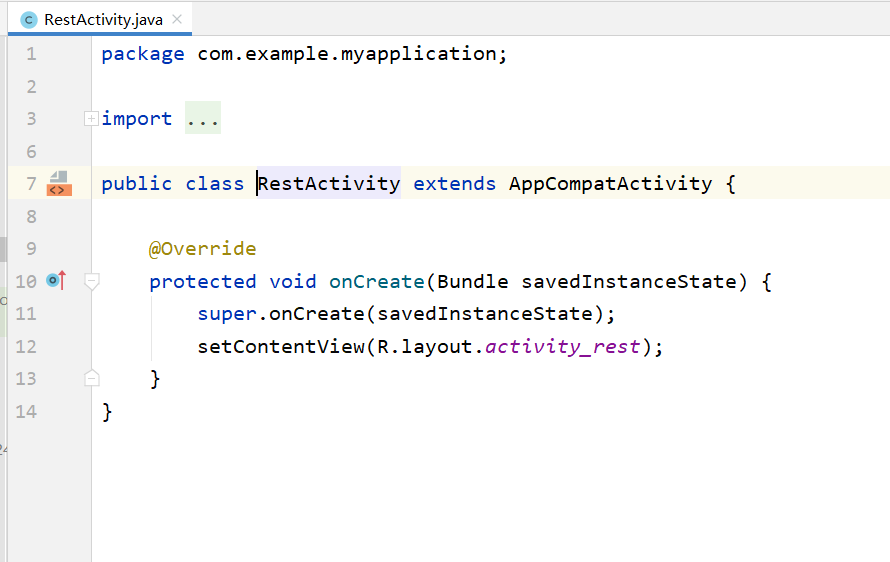

三、點擊進行頁面進行跳轉 (一)新建一個註冊activity與主頁面activity 首先呢,咱們得先有個跳轉後的主頁面和註冊頁面,這裡為瞭方便演示,就簡單整個註冊頁面和主頁面吧!狗頭保命

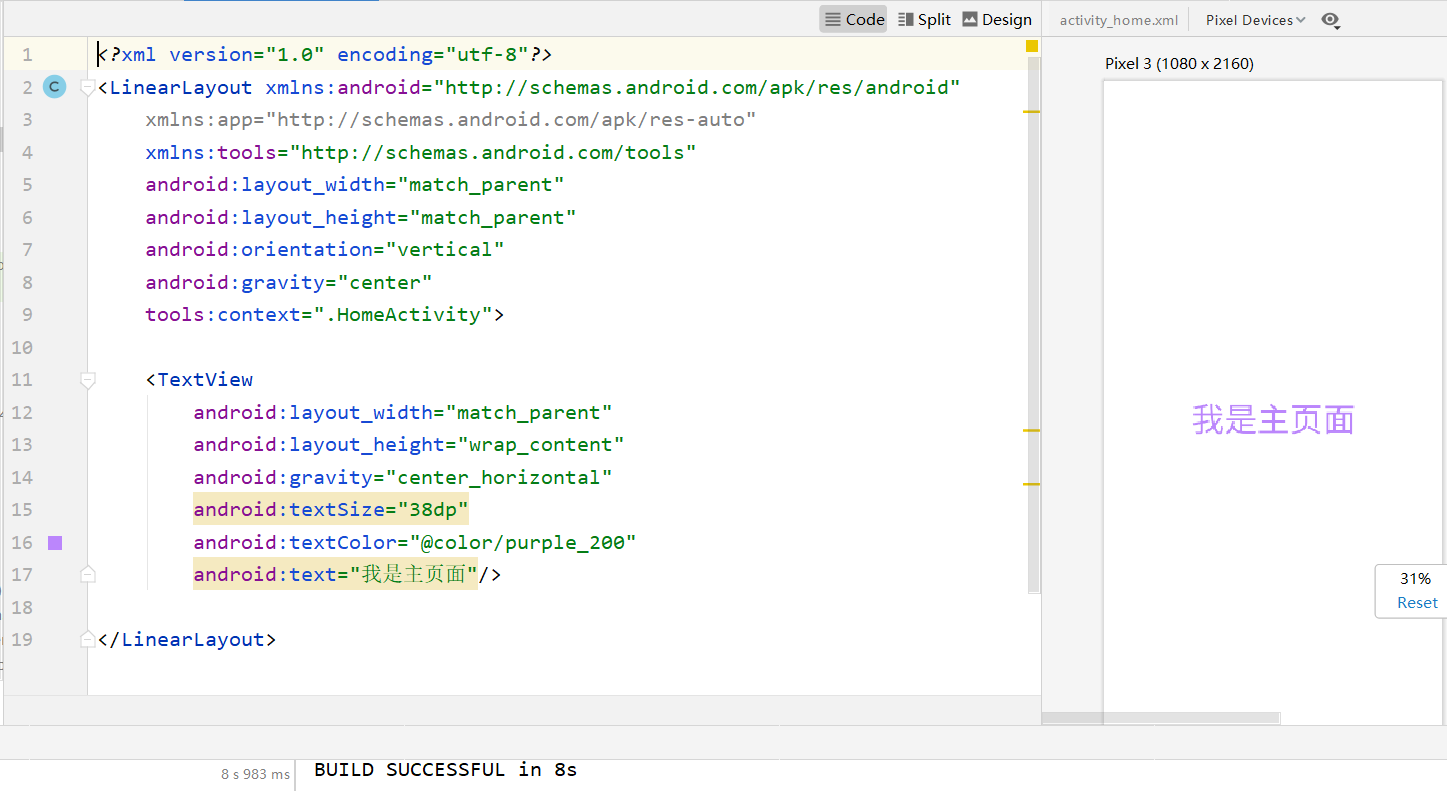

(二)分別在這倆佈局裡面隨便寫點標識的東西


(三)在LoginActivity中用Intent對其實現跳轉

package com.example.myapplication;import androidx.appcompat.app.AppCompatActivity;import android.app.Activity;import android.content.Intent;import android.os.Bundle;import android.view.View;import android.widget.Button;import android.widget.EditText;import android.widget.Toast;public class LoginActivity extends AppCompatActivity {    @Override    protected void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        setContentView(R.layout.activity_login);        Button button = findViewById(R.id.login_btn);        Button button1 = findViewById(R.id.reg_btn);        EditText e_username = findViewById(R.id.login_name);        EditText e_password = findViewById(R.id.login_password);        String username = e_username.getText().toString();        String password = e_password.getText().toString();        //點擊登錄按鈕,實現跳轉        button.setOnClickListener(new View.OnClickListener() {            @Override            public void onClick(View v) {                Toast.makeText(LoginActivity.this,username,Toast.LENGTH_SHORT);                Toast.makeText(LoginActivity.this,password,Toast.LENGTH_SHORT);                Intent intent = new Intent(LoginActivity.this,HomeActivity.class);                startActivity(intent);            }        });        button1.setOnClickListener(new View.OnClickListener() {            @Override            public void onClick(View v) {                Intent intent = new Intent(LoginActivity.this,RestActivity.class);                startActivity(intent);            }        });    }}

狗頭三連 ~~~~~~~~~~~~~~~~~~~
